Open-chamber gas

Capacity: 160 ÷ 800 l

DHW production: 297 ÷ 905 l/h

Heating time: 19’ ÷ 69

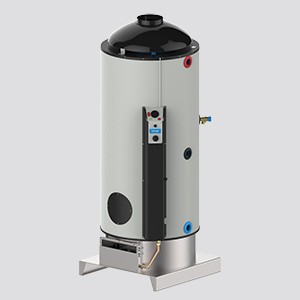

The new range of water heaters with natural flue draft of the TGE LX are manufactured in accordance with the new Low NOx 812-814/2013 standard on low NOx emissions.

The appliances have an electric gas valve and electronic flame ioni-sation ignition. All the functions are controlled by an electronic con-trol unit which monitors the correct system operation along with the detection electrode, work and safety thermostats.

The TGE LX series has several benefits compared to traditional appli-ances with a pilot flame:

• Lower running costs due to the absence of a pilot flame.

• No possibility of failed operation due to the pilot being blown out by the wind, draughts or poor pilot adjustment.

They have multi-gas burners in stainless steel, which operate with both natural gas and LPG, a SCD (Smoke Control Device) which inter-rupts the flow of gas to the burner in the presence of leakages and/or combustion faults, and a steel glass-line flue. The easily inspect-ed magnesium anode and 50-mm thick rigid polyurethane insulation ensure a long life span and cost-saving operation.

The front inspection flange ensures easy cleaning of the interior and quick replacement of the magnesium anode.
The capacities available range from 160 up to 800 litres and with power from 12 to 28 kW.
